使用 Vue3 构建 Web Components

  • Home
  • vue_web_components
Scroll down

有时候想写一个无关框架组件,又不想用原生或者 Jquery 那套去写,而且还要避免样式冲突,用 Web Components 去做刚觉就挺合适的。但是现在 Web Components 使用起来还是不够灵活,很多地方还是不太方便的,如果能和 MVVM 搭配使用就好了。早在之前 Angular 就支持将组件构建成 Web Components,Vue3 3.2+ 开始终于支持将组建构建成 Web Components 了。正好最近想重构下评论插件,于是上手试了试。

构建 Web Components

vue 提供了一个 defineCustomElement 方法,用来将 vue 组件转换成一个扩展至HTMLElement的自定义函数构造函数,使用方式和 defineComponent 参数api基本保持一致。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import { defineCustomElement } from 'vue'

const MyVueElement = defineCustomElement({
// 在此提供正常的 Vue 组件选项
props: {},
emits: {},
template: `...`,

// defineCustomElement 独有特性: CSS 会被注入到隐式根 (shadow root) 中
styles: [`/* inlined css */`]
})

// 注册 Web Components
customElements.define('my-vue-element', MyVueElement)

如果需要使用单文件,需要 @vitejs/plugin-vue@^1.4.0vue-loader@^16.5.0 或更高版本工具。如果只是部分文件需要使用,可以将后缀改为 .ce.vue 。若果需要将所有文件都构建 Web Components 可以将 @vitejs/plugin-vue@^1.4.0vue-loader@^16.5.0customElement 配置项开启。这样不需要再使用 .ce.vue 后缀名了。

属性

vue 会把所有的的 props 自定义元素的对象的 property 上,也会将自定义元素标签上的 attribute 做一个映射。

1
2
3
4
5
<com-demo type="a"></com-demo>

props:{
type:String
}

因为 HTML 的 attribute 的只能是字符串,除了基础类型(Boolean、Number) Vue 在映射时会帮忙做类型转换,其他复杂类型则需要设置到 DOM property 上。

事件

在自定义元素中,通过 this.$emit 或在 setup 中的 emit 发出的事件会被调度为原生 CustomEvents。附加的事件参数 (payload) 会作为数组暴露在 CustomEvent 对象的 details property 上。

插槽

编写组件时,可以想 vue 一样,但是使用时只能原生的插槽语法,所以也不在支持作用域插槽。

子组件样式问题

使用子组件嵌套的时,有个坑的地方就是默认不会将子组件里的样式抽离出来。

父组件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<template>
<div class="title">{{ title }}</div>
<Childer />
</template>
<script>
import Childer from "./childer.vue"
export default {
components: { Childer },
data() {
return {
title: "父组件"
}
},
}
</script>
<style lang="less" scoped>
.title {
padding: 10px;
background-color: #eee;
font-weight: bold;
}
</style>

子组件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<template>
<div class="childer">{{ title }}</div>
</template>
<script>
export default {
data() {
return {
title: "子组件"
}
},
}
</script>
<style lang="less" scoped>
.childer {
padding: 10px;
background-color: #222;
color: #fff;
font-weight: bold;
}
</style>

可以看到子组件的样式没有插入进去,但是样式隔离的标识是有生成的 data-v-5e87e937。不知道vue官方后续会不会修复这个bug

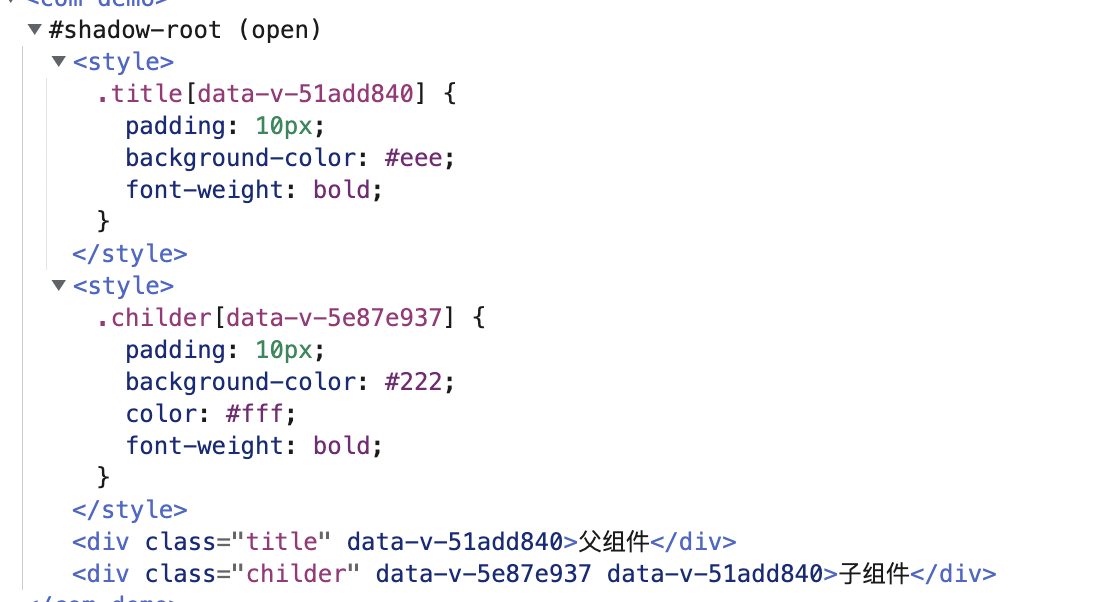

插入图片生成HTML

查看组件是可以看到,子组件的样式是有被抽离出来的,这样就只需要自己注入进去了。

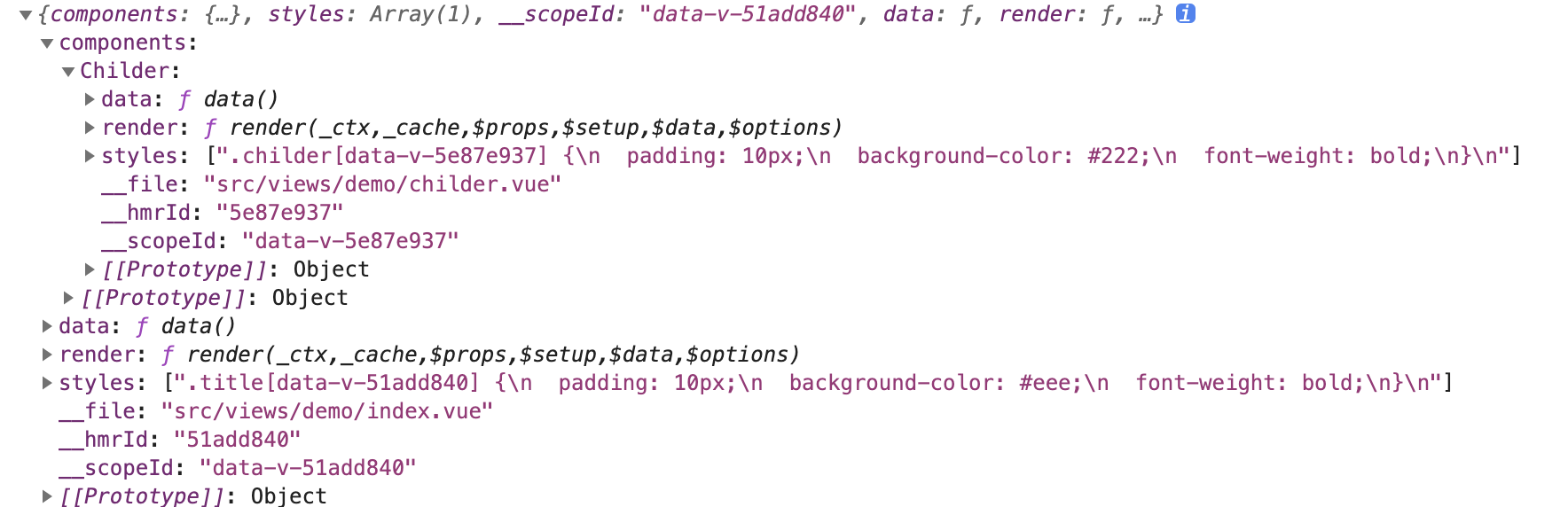

插入图片实例对象

将子组件样式抽离插入到父组件里,参考这个的实现

1
2
3
4
5
6
7
8
9
10
import ComDemo from '~/demo/index.vue'

const deepStylesOf = ({ styles = [], components = {} }) => {
const unique = array => [...new Set(array)];
return unique([...styles, ...Object.values(components).flatMap(deepStylesOf)]);
}
// 将子组件样式插入到父组件里
ComDemo.styles = deepStylesOf(ComDemo)

!customElements.get('com-demo') && customElements.define('com-demo', defineCustomElement(ComDemo))

完美解决子组件样式问题

插入图片效果图

方法

defineCustomElement 构建的组件默认是不会将方法挂到 customElement 上的,看 Vue 源码中,只有 _def(构造函数),_instance(组件实例))。如果想调用组件内的方法,dom._instance.proxy.fun(),感觉实在不太优雅。

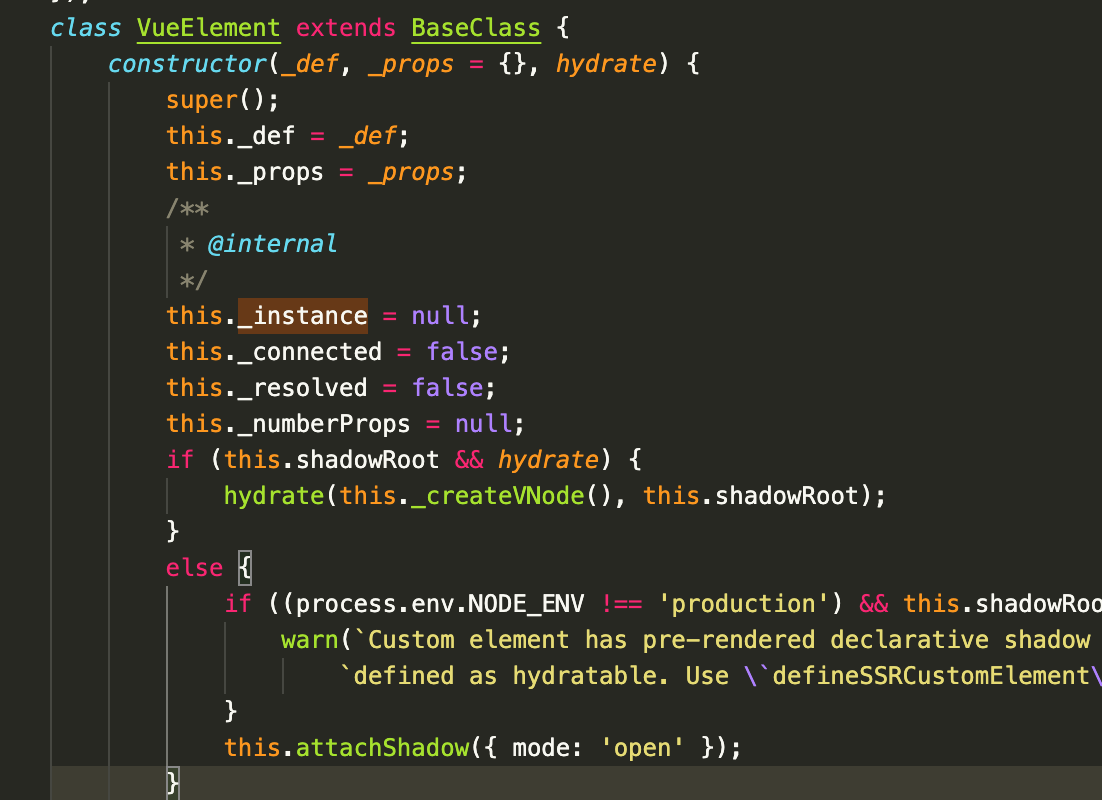

vuecode
我们当然希望我们组件暴露的方法能像普通dom那样直接 dom.fun() 去掉用,我们对 defineCustomElement 稍作扩展。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import { VueElement, defineComponent } from 'vue'

const defineCustomElement = (options, hydate) => {
const Comp = defineComponent(options);
class VueCustomElement extends VueElement {
constructor(initialProps) {
super(Comp, initialProps, hydate);
if (Comp.methods) {
Object.keys(Comp.methods).forEach(key => {
// 将所有非下划线开头方法 绑定到 元素上
if(!/^_/.test(key)){
this[key] = function (...res) {
if (this._instance) {
// 将方法thi改为 组件实例的proxy
return Comp.methods[key].call(this._instance.proxy, ...res)
} else {
throw new Error('未找到组件实例')
}
}
}
})
}
}
}
VueCustomElement.def = Comp;
return VueCustomElement;
}

总结

总体来说坑还是有不少的,如果仅仅需要构建一些比较简单跨框架插件,使用这种方式来构建 Web Components 也是一种不错的方案。
